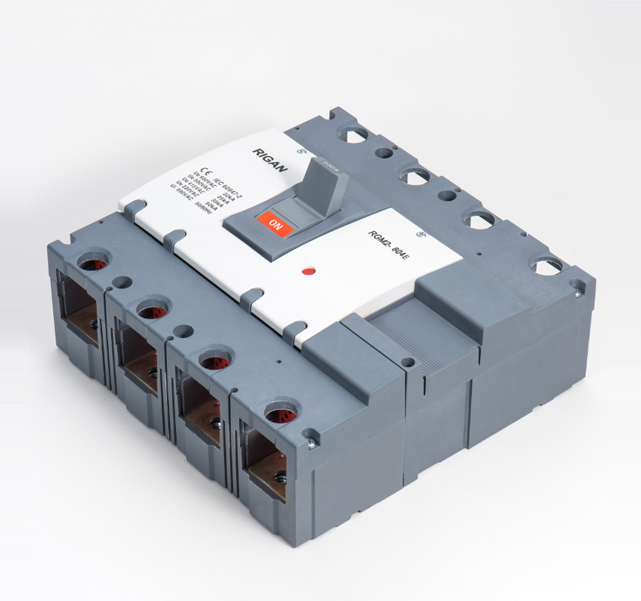

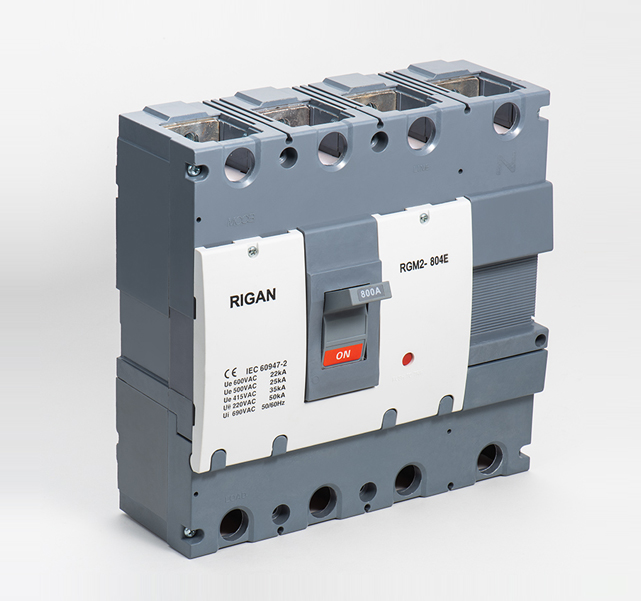

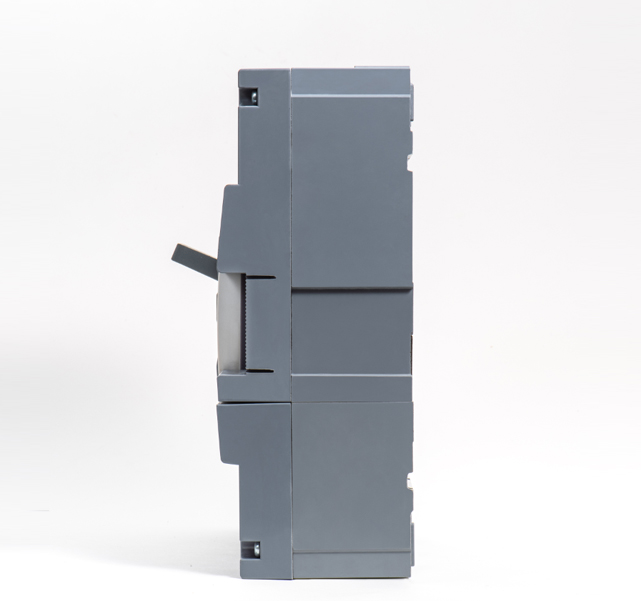

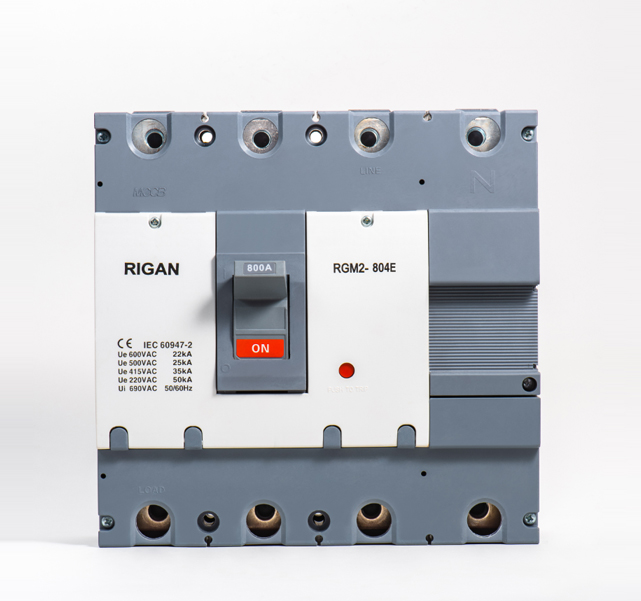

GENERAL

RGM2-800 moulded case circuit breaker (hereafter simply referred to as breakers), the rated insulation voltage of the breakers is 690V. In the circuit of AC50Hz/60Hz, rated working voltage 600V or below ,rated current from 700A to 800A, the breakers take the role of infrequent turn-on or turn-off .The breakers have overload and short-circuit protection devices ,so as to protect the circuit and the power equipment against damage.

The breakers according to the rated maximal value to short-circuit breaking ability(Icu),would be classified type E&S.

The breakers could be installed vertically or horizontally.

The breakers have isolating function and its corresponding symbol is shown as .

The breakers comply with the demands of the following standards:

EN/IEC60947-1 Low-voltage switchgear and controlgear——Part1：General rules.

EN/IEC60947-2 Low-voltage switchgear and controlgear——Part 2：Circuit-breaker.

NORMAL SERVICE AND MOUNTING CONDTIONS

The ambient air temperature does not exceed ＋40℃ and its average over a period of 24h does not exceed ＋35℃,the lower limit of the ambient air temperature is －5℃.

The altitude of the site of installation does not exceed 2000m.

The relative humidity of the air does not exceed 50% at a maximum temperature of +40℃ , higher relative humidities may be permitted at lower temperature,e.g.90% at +20℃. Special measures may be necessary in cases of occasional condensation due to variations in temperature.

Pollution degree 3.

Installing category: III for the main circuit , and II for other auxiliary and control circuits.

Be suitable in electromagnetic environment A.

There must be not any explosive medium, and there must be not any gas which would corrode metal or any conducting dust which would destory the insulation

The place would not be invaded by rain and snow.

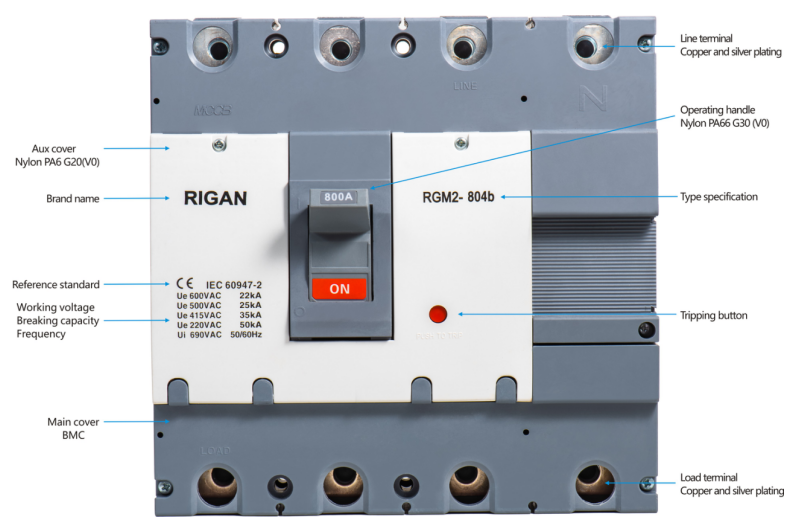

STRUCTURE INTRODUCTION

MAIN TECHNICAL PERFORMANCE INDEX

Frame			800
Type			RGM2-802E	RGM2-803E	RGM2-804E	RGM2-802S	RGM2-803S	RGM2-804S
Pole number			2	3	4	2	3	4
Rated current(A)                         In			700、800			700、800
Rated insulation voltage(V)        Ui			AC690			AC690
Rated impulse withstand vol(V)  Uimp			6000			6000
Rated operational voltage (V)     Ue			AC600			AC600
Rated ultimate short-circuit     breaking ability      (kA) Icu		230V	50	50	50	100	100	100
		415V	35	35	35	50	50	50
		500V	25	25	25	45	45	45
		600V	22	22	22	25	25	25
Operating short-circuit breaking ability    Ics (%Icu)			50			50
Arc-over distance（mm）			≯100			≯100
Category			A			A
Over-current tripping device			Thermal-magnetic			Thermal-magnetic
Comply standards			GB14048.2 idt IEC60947-2			GB14048.2 idt IEC60947-2
Operational performance (times)	Mechanical life		2500			2500
	Electrical life		500			500
Outline dimensions(mm)		L	280			280
		W	210	210	280	210	210	280
		H	113			113

OUTLINE AND MOUNTING DIMENSIONS

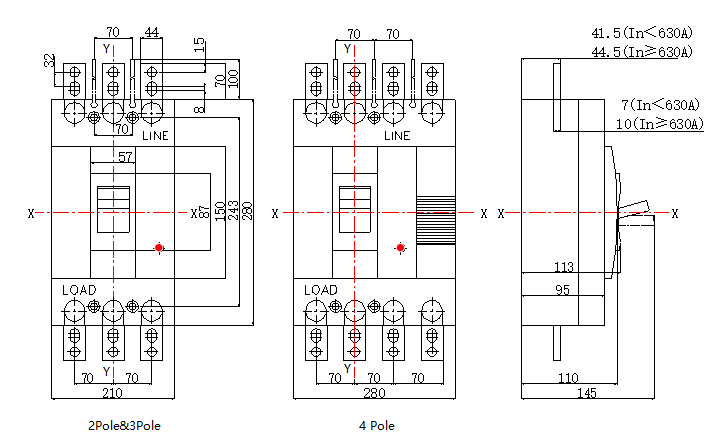

Outline dimensions

Extension conductor dimensions

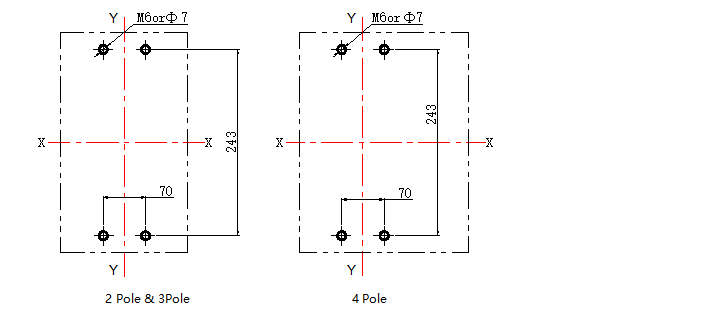

Aperture dimensions of the sub-panel
