GENERAL

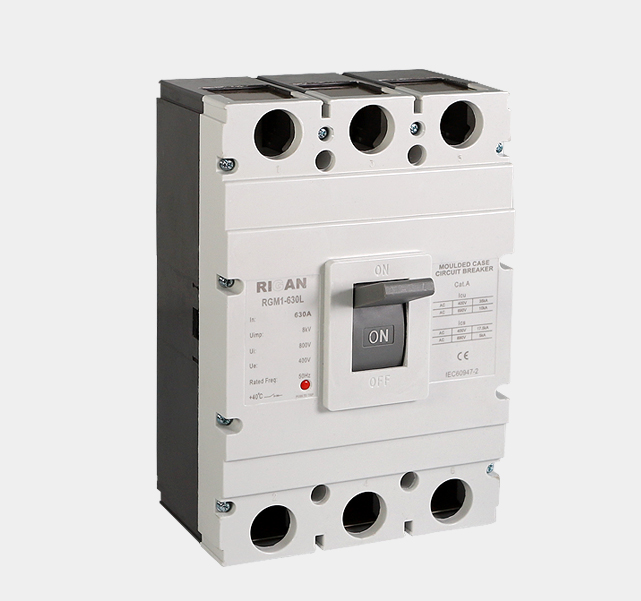

RGM1-630 moulded case circuit breaker (hereafter simply referred to as breakers), the rated insulation voltage of the breakers is 800V. In the circuit of AC50Hz/60Hz, rated working voltage 690V or below ,rated current from 400A to 630A, the breakers take the role of infrequent turn-on or turn-off .The breakers have overload and short-circuit protection devices ,so as to protect the circuit and the power equipment against damage.

The breakers according to the rated maximal value to short-circuit breaking ability(Icu),would be classified type L/M/H.

The breakers could be installed vertically or horizontally.

The breakers have isolating function and its corresponding symbol is shown as .

The breakers comply with the demands of the following standards:

EN/IEC60947-1 Low-voltage switchgear and controlgear——Part1：General rules.

EN/IEC60947-1 Low-voltage switchgear and controlgear——Part 2：Circuit-breaker.

NORMAL SERVICE AND MOUNTING CONDTIONS

The ambient air temperature does not exceed ＋40℃ and its average over a period of 24h does not exceed ＋35℃,the lower limit of the ambient air temperature is －5℃.

The altitude of the site of installation does not exceed 2000m.

The relative humidity of the air does not exceed 50% at a maximum temperature of +40℃ , higher relative humidities may be permitted at lower temperature,e.g.90% at +20℃. Special measures may be necessary in cases of occasional condensation due to variations in temperature.

Pollution degree 3.

Installing category: III for the main circuit , and II for other auxiliary and control circuits.

Be suitable in electromagnetic environment A.

There must be not any explosive medium, and there must be not any gas which would corrode metal or any conducting dust which would destory the insulation

The place would not be invaded by rain and snow.

MAIN TECHNICAL PERFORMANCE INDEX

Frame			630
Type			RGM1-630
Pole number			3		4	3	3
Rated current(A)                    In			400、500、630
Rated insulation voltage(VAC)       Ui			800			800		800
Rated impulse withstand vol(V)   Uimp			8000			8000		8000
Rated operational voltage (VAC)     Ue			400		400/690	400/690		400/690
Breaking ability code			L			M		H
Rated ultimate   short-circuit     breaking ability         (kA) Icu		400V	35			50		65
		690V	/			20		20
Operating short-circuit breaking ability        Ics (%Icu)			50			50		50
Arc-over distance（mm）			≯100			≯100		≯100
Category			A			A		A
Over-current tripping device			Thermal-magnetic			Thermal-magnetic		Thermal-magnetic
Comply standards			IEC60947-2			IEC60947-2		IEC60947-2
Operational performance (times)	Mechanical life		4000			4000		4000
	Electrical life		1000			1000		1000
Outline dimensions(mm)		L	270			270		270
		W	182		240	182		182
		H	110			110		110
Shunt release			√			√		√
Under-voltage release			√			√		√
Auxiliary contact			√			√		√
Alarm contact			√			√		√
Turning handle mechanism			√			√		√
Power-driven mechanism			√			√		√

OUTLINE AND MOUNTING DIMENSIONS

Wiring in front of the board

Wiring on back of the board

Insertion type wiring on back of the board
