GENERAL

RGM3HU series moulded case circuit breaker (hereafter simply referred to as breakers), the maximum rated voltage of the breakers is DC1500V,and the maximum current is 800A.In the voltage of DC1500V,the maximum breaking capacity is 50kA,which can ensure reliable short-circuit protection of the system.

The breakers could be installed vertically or horizontally.

The breakers comply with the demands of the following standards:

IEC60947-1 and GB14048.1  Low-voltage switchgear and controlgear——Part1：General rules.

IEC60947-2 and GB/T14048.2  Low-voltage switchgear and controlgear——Part 2：Circuit-breaker.

NORMAL SERVICE AND MOUNTING CONDTIONS

The ambient air temperature does not exceed ＋40℃ and its average over a period of 24h does not exceed ＋35℃,the lower limit of the ambient air temperature is －5℃.

The altitude of the site of installation does not exceed 5500m.

It is resistant to damp air(three-proof type).

It is resistant to the influence of salt fog and oil fog(three-proof type).

It is resistant to the influence of mold(three-proof type).

In a medium without explosion risk, and the medium is not enough to corrode the metal and destroy the insulation of the gas and conductive dust.

Note: The three-prevention products should be specially customized, please indicate TH.

MAIN TECHNICAL PERFORMANCE INDEX

Frame		125

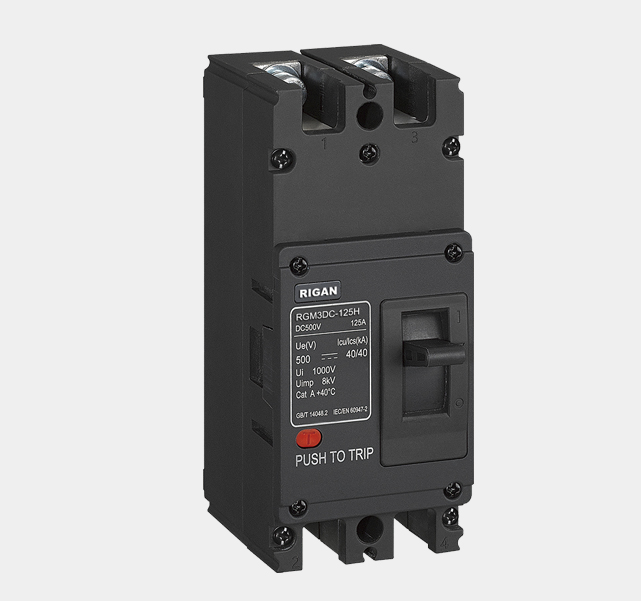

Type		RGM3DC-125
Pole number		2
Rated current(A)                         In		50、63、80、100、125
Rated insulation voltage(VAC)    Ui		750
Rated impulse withstand vol(V)   Uimp		8
Rated operational voltage (VAC)  Ue		250	500
Rated ultimate short-circuit breaking ability      (kA) Icu		40	40
Operating short-circuit breaking ability  (kA) Ics		100%Icu
Wiring mode		Up incoming and down outcoming Down incoming and up outcoming
Arc-over distance（mm）		≯50(Zero arc with arcing cover)
Allowable ambient temperature		-40~+70℃
Levels of protection		IP20
Transient Action value		10In
Comply standards		IEC60947-2
Operational performance(times)	Mechanical life	20000
	Electrical life	5000	3000
Outline dimensions(mm)	L	150
	W	64
	H	95
Shunt release		√
Auxiliary contact		√
Alarm contact		√
Turning handle mechanism		√
Power-driven mechanism		√
